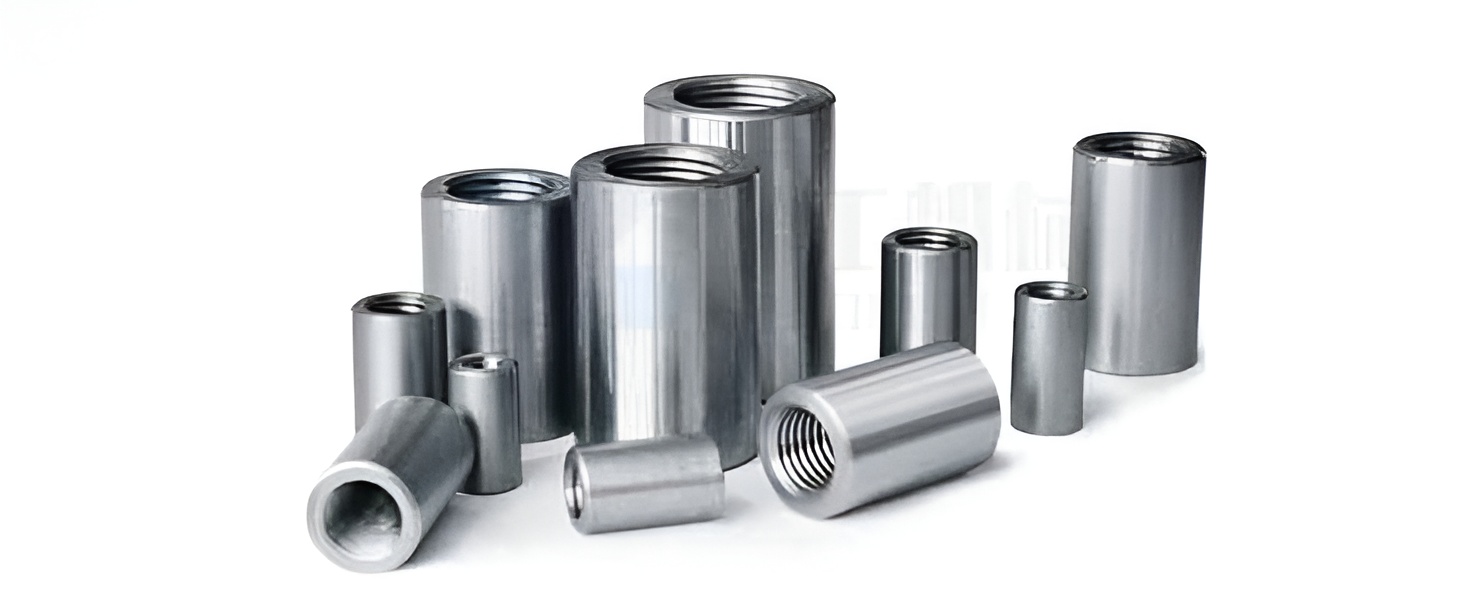

Rebar Coupler
Teknomatic Engineering manufactures premium Rebar Couplers, mechanical connectors designed to join reinforcing steel bars end-to-end without the need for overlapping laps. This creates a continuous load path, ensuring structural continuity and reducing reinforcement congestion in high-performance constructions.
Manufactured with precision, Rebar Couplers are suitable for seismic zones, high-rise buildings, bridges, precast modules, and other demanding applications. They combine high strength, durability, and ease of installation to deliver reliable performance.
Key Features & Benefits
- Structural Continuity: Ensures direct load transfer between rebars, enhancing structural integrity.
- High Strength: Matches or exceeds the strength of parent rebar, providing reliable performance.
- Compact Design: Reduces reinforcement congestion, facilitating easier concrete placement.
- Easy Installation: Allows for quick and efficient assembly, saving time on-site.
- Seismic Performance: Designed to perform well under seismic loads, ensuring safety in earthquake-prone areas.
- Corrosion Resistance: Available in epoxy-coated and galvanized finishes to withstand harsh environments.
- Traceability: Each coupler is batch-marked for full traceability and quality assurance.
- Compliance: Meets international standards including ISO 15835 and local building codes.
Specifications & Range
Teknomatic Rebar Couplers are available for a wide range of bar diameters. Below is a representative specification table:
| Bar Diameter (mm) | Coupler Outer Diameter (mm) | Coupler Length (mm) | Internal Thread Size | Thread Pitch (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|
| 12 | 20 | 32 | M10 × 2.0 | 2.0 | 0.05 |
| 16 | 25 | 40 | M14 × 2.5 | 2.5 | 0.09 |
| 20 | 32 | 50 | M18 × 2.5 | 2.5 | 0.18 |
| 25 | 40 | 60 | M23 × 3.0 | 3.0 | 0.32 |
| 32 | 50 | 80 | M30 × 3.0 | 3.0 | 0.75 |
| 40 | 62 | 90 | M38 × 3.5 | 3.5 | 1.20 |
Why Choose Our Rebar Coupler?
Teknomatic Rebar Couplers offer several advantages over traditional lapping methods:
- Enhanced Structural Integrity: Provides a continuous load path, reducing the risk of structural failure.
- Space Efficiency: Eliminates the need for overlapping rebars, reducing congestion and facilitating easier concrete placement.
- Cost-Effective: Reduces material usage and labor costs, offering long-term savings.
- Improved Safety: Designed to perform well under seismic loads, ensuring safety in earthquake-prone areas.
- Quality Assurance: Manufactured to international standards, ensuring consistent quality and performance.
